Expand Your Wireless System

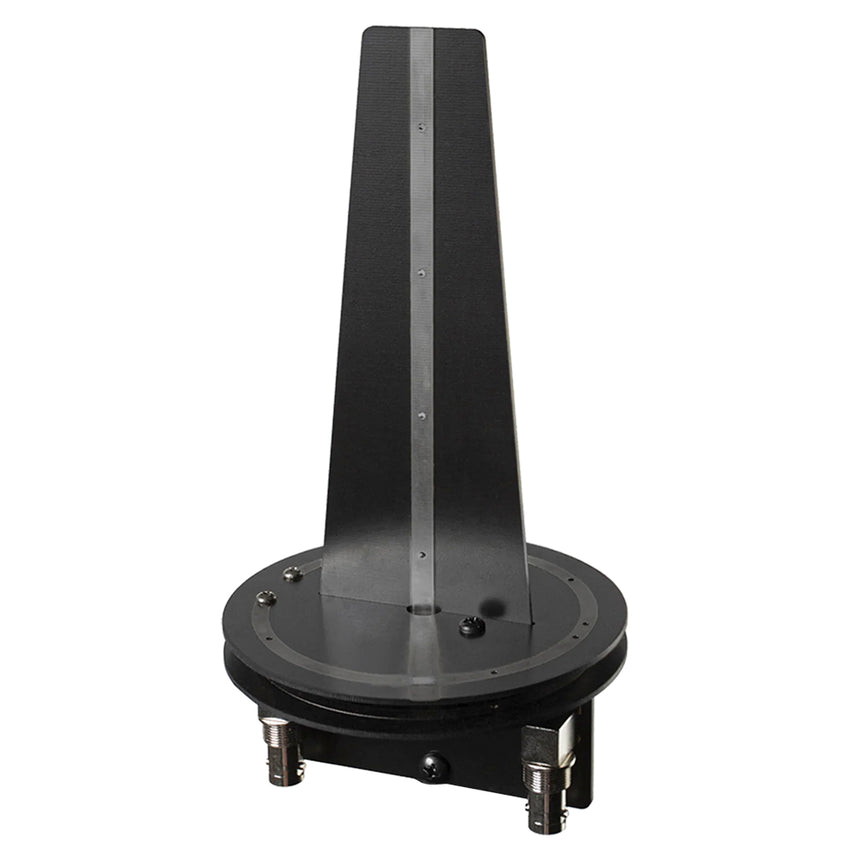

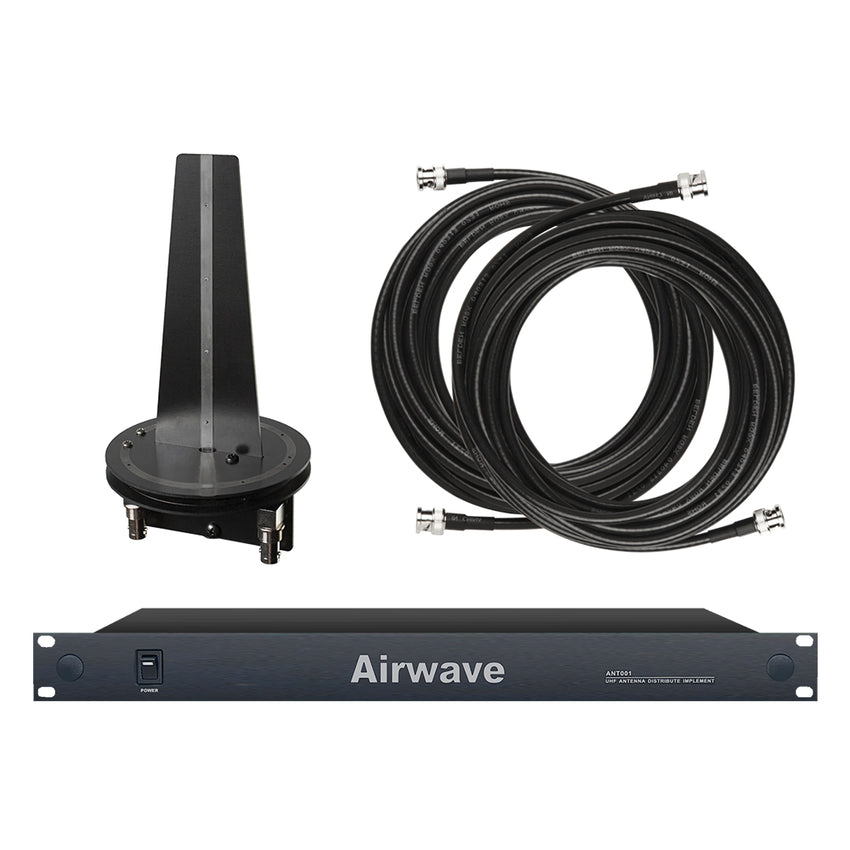

The Airwave Technologies ANT-001-SYS Antenna Distro System streamlines your wireless setup by allowing up to 10 single-antenna receivers—or 5 dual-antenna systems—to share a single Omni Directional Antenna. This complete system includes the antenna along with all necessary BNC cables, adapters, power jumpers, and mounting hardware required for a clean, professional installation right out of the box.

By centralizing the antenna system, the ANT-001-SYS minimizes signal dropout and interference caused by multi-path reflections, cross-polarization, and intermodulation distortion that can occur when multiple antennas are placed in close proximity. The diversity omni antenna ensures consistent RF coverage across all connected channels.

Designed for convenience, the antenna mounts easily to any standard mic stand for optimal placement. An integrated booster amplifier extends wireless range up to up to a 200' diameter circle, delivering reliable performance for professional stages, houses of worship, and large event spaces.

The ANT-001-SYS also provides DC power distribution to compatible receivers, reducing cable clutter and eliminating the need for multiple external power supplies. With superior range, reliability, and flexibility, the ANT-001-SYS is a turnkey solution for productions that demand seamless multi-channel wireless operation.

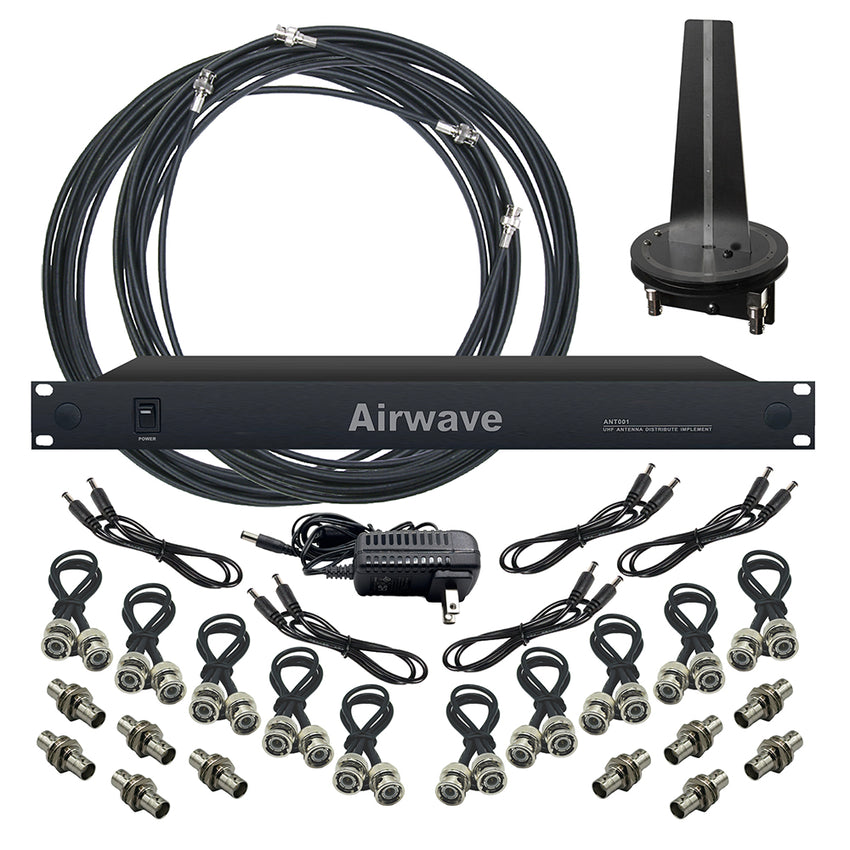

INCLUDED IN PACKAGE

1 ANT-001 Antenna Distro

1 Omni-Directional Antenna

10 BNC Jumper Cables

10 BNC Adaptors

4 DC Power Jumper Cables

2 25' Antenna Cables

Hardware Kit

1 Power Supply

SPECIFICATIONS

 Frequency Range: 450~950MHz

Frequency Bandwidth: 400Mhz

Input Impedance: 50 Ω

Output Impedance: 50 Ω

Antenna Input Interface: BNC x 8

Antenna Output Interface: BNC x 2

Gain: +3dB Output Insulation: >25dB

Operating Temperature Range: 28°F - 122°F

Power Supply: 12V~18V 3000MA

Dimensions: 6.30"(W) x 16.14"(L) x 1. 73"(H)

Weight: 4.4 lbs.
