Turnkey 6 Channel Wireless System Package with 6 Titanium Slim Clip System Dual Ear Headsets, 6 Titanium Lavalieres with Accessories, 6 Handheld Microphones, and 6 Body Packs
This is the ultimate 6 channel system for a rental company that needs to provide a pro sound solution for their customers. The entire system is housed in a 12 space rolling flight case that securely protects each component of the system. Easy to transport, this setup with 3 options for each of the 6 channels is the perfect solution for powerhouse wireless microphone rental services. Also available in multiple configurations.
3 Airwave Technologies AT-4200 Dual Channel Wireless Systems
6 HSD-TITANIUM Slim Clip System Dual Ear Wireless Microphone Headsets
6 LAV-TITANIUM Lavaliere Microphones with Accessory Package
6 AT-4000 Series U-41 Handheld Microphones
6 AT-4000 Series U-42 Wireless Body Packs

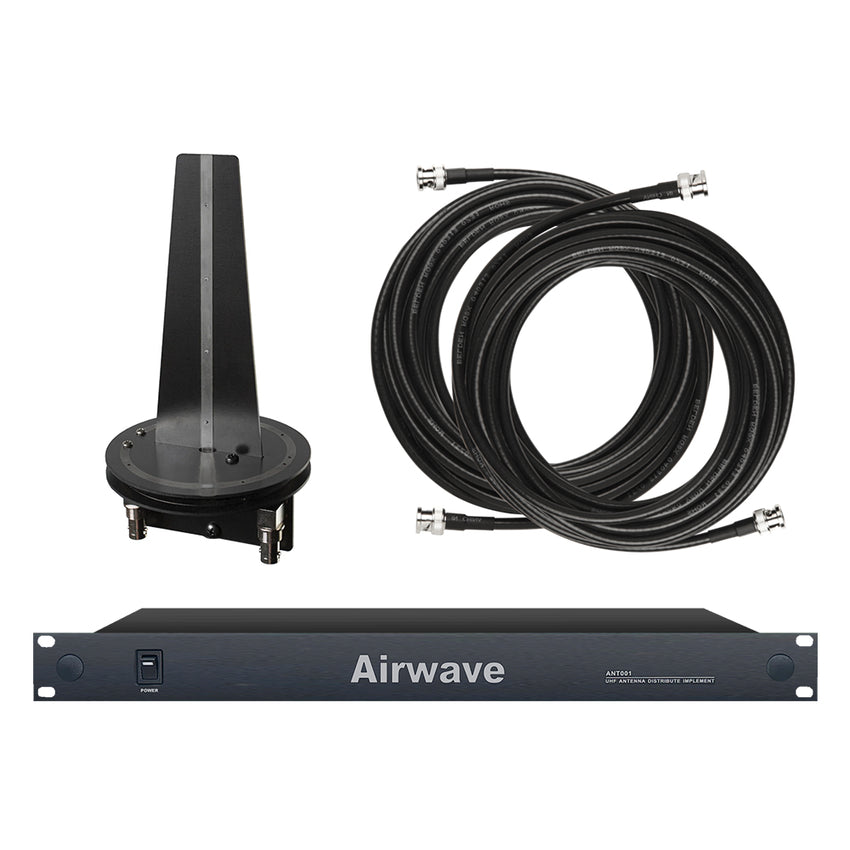

ANT-001 Rack Mount Antenna Distro
RF Venue Diversity Omni™ Antenna
2 Band-Pass Filters
2 25ft Antenna Cables
6 Wireless Microphone Clips
12 Space Flight Rack with Casters
1 Four Space Rack Drawer with Diced Foam
2 Two Space Rack Drawer with Diced Foam
514-542 MHz
FCC Tested and Approved: FCC ID 2AINTAT-4200
*Microphone stand for RF Venue DFIN not included
AT-4200 WIRELESS MICROPHONE RECEIVER SPECIFICATIONS
Frequency Range: 470~489MHz / 514~542 MHZ
Modulation : FM
Working Range: 328’
Optional Frequency: 192
Frequency Response: 50Hz ~ 15KHz (±3dB)
Dynamic Range: > 105dB
THD: < 0.5%
S/N Ratio: > 102dB(A)
RF Sensitivity: < -95dBm
Image Rejection: > 60dB
Output Connectors: XLR×1/ 1/4-inch connector×1
Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV
Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 32°F - 122°F
Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)
Weight: 3.858 lb.
FCC ID: 2AINTAT-4200
AT-U41 HANDHELD MICROPHONE TRANSMITTER SPECIFICATIONS
Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz
Capsule Frequency Response: 50Hz ~ 16KHz
Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power: 2mW / 10mW / 30mW
Spurious: >dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84” x 1.97”
Weight: 12.7oz
AT-U42 BODYPACK TRANSMITTER SPECIFICATIONS
Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >8H/1300mAH
Dimensions: 6.5” x 2.56” x .91”
Weight: 4.59oz
If using up to 2 units (up to 4 channels) the system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
