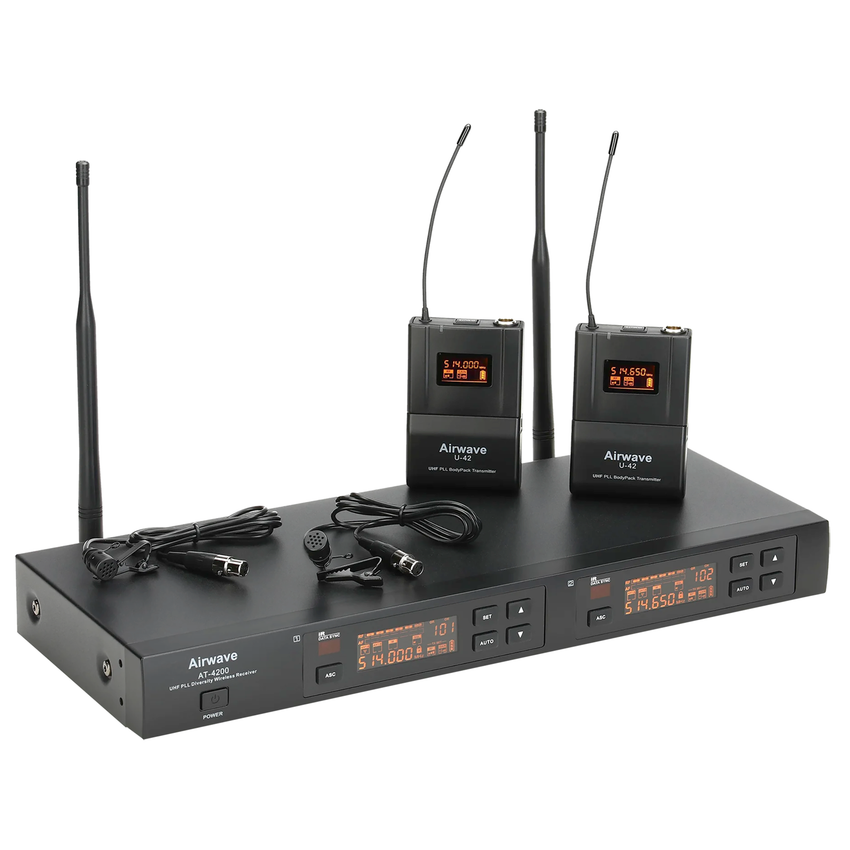

AT-4220 | 2 Channel Wireless Microphone System with Lavaliers

$539.95$849.95
  • Airwave Technologies 2 channel dual wireless microphone system Shure Audio Technica Sennheiser Church Worship School Theater Vocal Lavalier bodypack
  • Airwave Technologies 2 channel dual wireless microphone system Shure Audio Technica Sennheiser Church Worship School Theater Vocal Lavalier bodypack

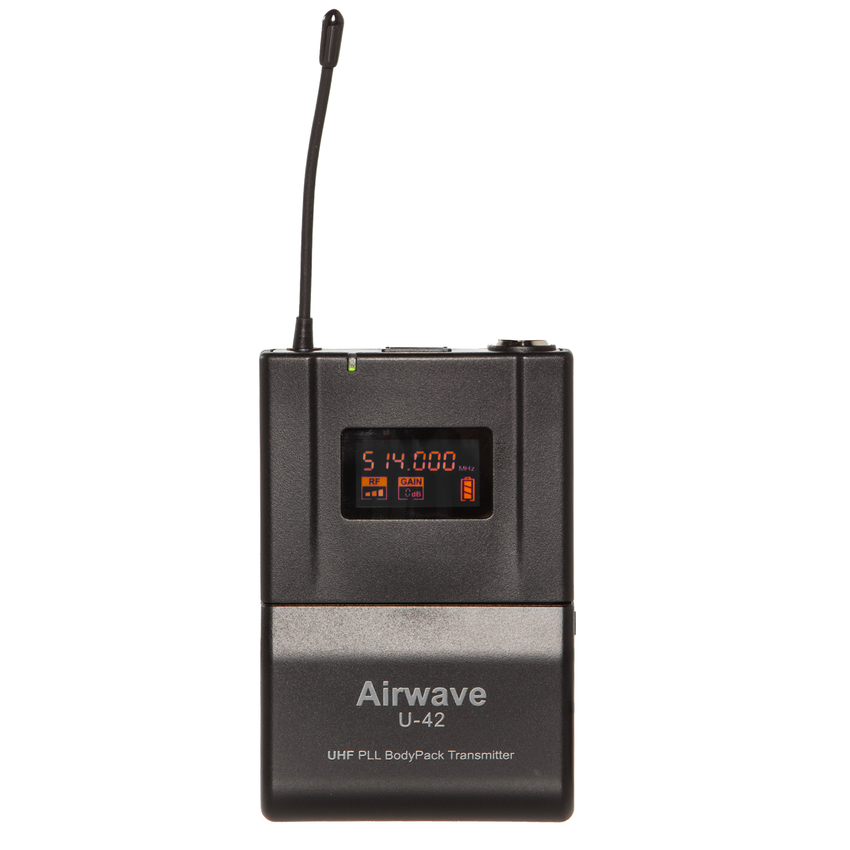

  • Airwave Technologies U-42 Bodypack for Wireless Microphone Systems
  • Airwave Technologies AT-4200 Dual Channel Wireless Microphone Receiver Rear of Unit
  • Airwave Technologies AT-4200 Dual Channel Wireless Microphone Accessories
  • Airwave Technologies AT-4200 Dual Channel Wireless Microphone Packaging

AT-4220 | 2 Channel Wireless Microphone System with Lavaliers

$539.95$849.95
$539.95$849.95
Free Shipping!

FREE SHIPPING!

144 Channel UHF Dual Channel 2 Lavalier Wireless Microphone System

UHF Lavalier Wireless System

144 Digital switchable UHF Channels

Choice of 514-542 MHz or 470-489 MHz Frequency Range

Infrared Frequency Sync

Auto Button for fast Frequency Sweep

Digital Adjustable volume, squelch and gain control

Battery Indicators on Body Packs and Base Station

Uses 2 AA batteries for up to 10 Hours of continuous use

System uses one rack space

1/4" and XLR mix outputs

Separate XLR channel outputs

FCC Tested and Approved: FCC ID  2AINTAT-4200

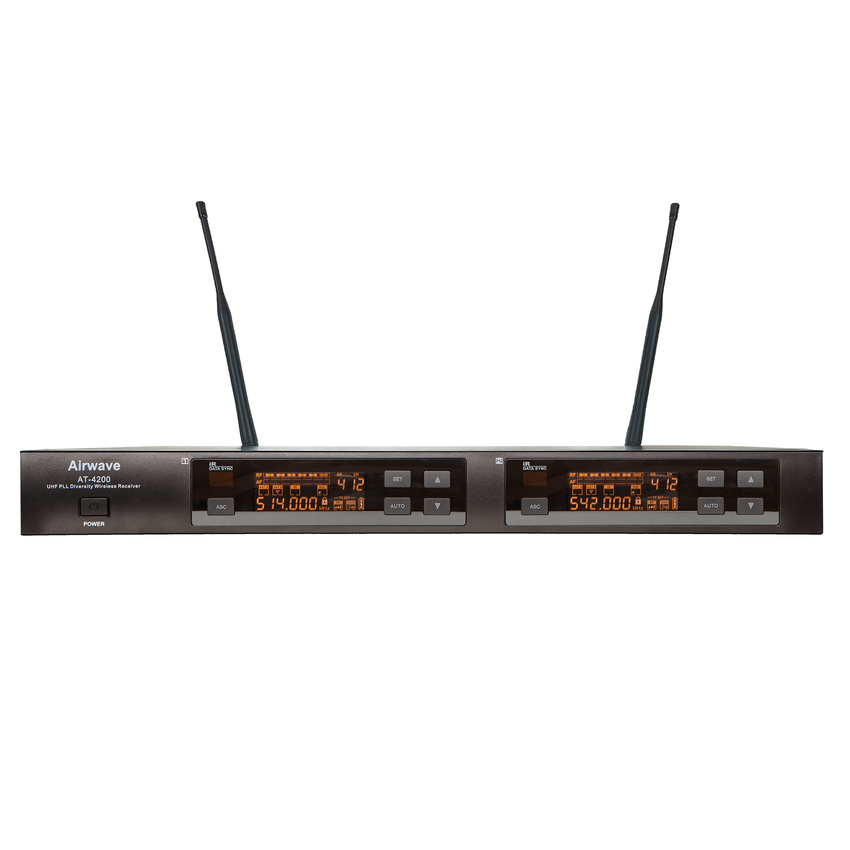

AT-4200 WIRELESS MICROPHONE RECEIVER SPECIFICATIONS

Frequency Range: 470~489MHz / 514~542 MHZ
Modulation : FM
Working Range: 328’
Optional Frequency: 192
Frequency Response: 50Hz ~ 15KHz (±3dB)
Dynamic Range: > 105dB
THD: < 0.5%
S/N Ratio: > 102dB(A)
RF Sensitivity: < -95dBm
Image Rejection: > 60dB
Output Connectors: XLR×1/ 1/4-inch connector×1
Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV
Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ
Pilot Tone: 32.768KHz

Display: LCD
Power Requirements:  12V/0.5A DC
Operating Temperature Range: 32
°F - 122°F
Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)
Weight: 3.858 lb.

FCC ID: 2AINTAT-4200



AT-U42 BODYPACK TRANSMITTER SPECIFICATIONS



Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ

Output Power: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >8H/1300mAH
Dimensions: 6.5” x 2.56” x .91”

Weight: 4.59oz



4200 Series Manual Link

If using up to 2 units (up to 4 channels) the system does not require an antenna combiner under normal conditions.  If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended. The official Antenna distribution partner of Airwave Technologies is RF Venue.   They are without question, the leaders of antenna distribution. When you need a body mic you can trust to get the job done right, trust the experts at Airwave Technologies. Reach out to our team today!
