Ten Channels. Three Microphone Options. One Complete Digital System.
The Airwave Technologies AT-RS10D is a complete 10-channel digital wireless microphone system built for rental companies, production teams, houses of worship, schools, theaters, event venues, and other applications that demand flexibility without the hassle of assembling multiple components.
The system combines five AT-6200D dual-channel digital receivers to provide ten channels of clear, dependable wireless audio. Each channel can be configured for handheld, lavalier, or headset use, giving operators the freedom to adapt the system to different events, presenters, performers, and production requirements.
The AT-RS10D includes ten U-61D digital handheld microphones and ten U-62D digital bodypack transmitters. Each bodypack can be paired with one of the included LAV-2 lavalier microphones or HSD-SLIMLINE+SE single-ear headsets. This gives you three microphone options for every channel while keeping the system organized as one complete package. One transmitter is used on each channel at a time.
Digital transmission and 24-bit audio conversion provide clean, detailed sound with reduced background noise. Automatic frequency scanning and infrared synchronization help streamline setup, while individual channel controls allow each voice or microphone style to be adjusted independently.

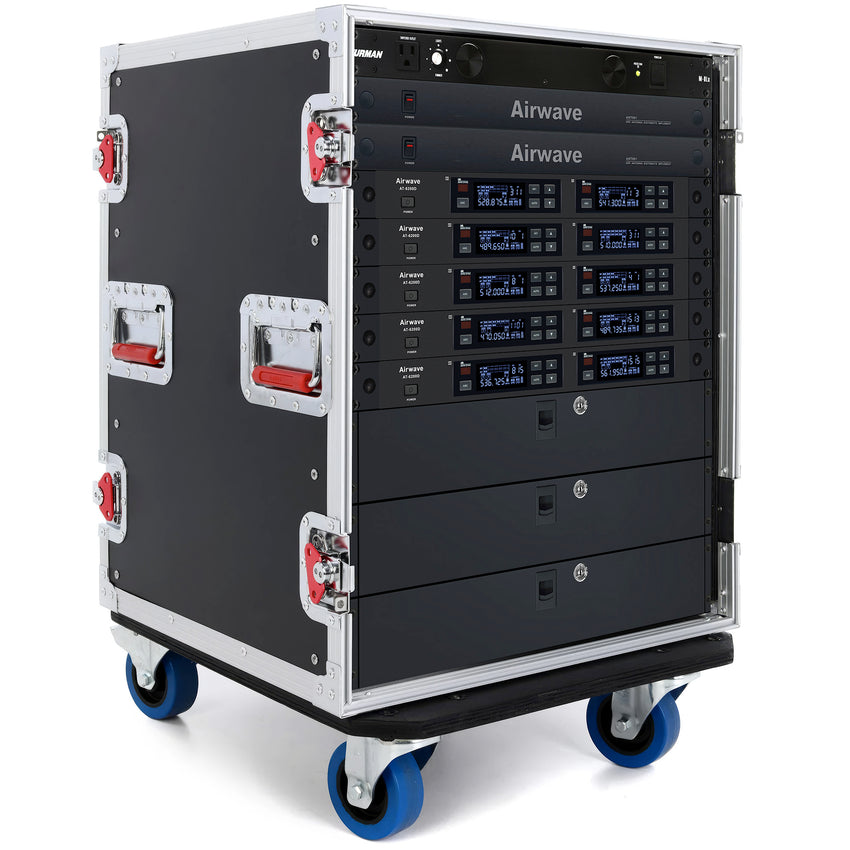

All five receivers and the system’s rack components are installed in a rugged 14U flight case for organized storage, protection, and transportation. Instead of piecing together receivers, transmitters, microphones, cables, and accessories for every job, the AT-RS10D keeps a complete ten-channel wireless solution ready to deploy.
For rental inventories and venues that need maximum versatility, the AT-RS10D delivers ten channels, three microphone options per channel, and one streamlined system built to handle a wide variety of professional audio applications.
Key Features
- Complete 10-channel digital wireless system
- Five AT-6200D dual-channel digital receivers
- Ten U-61D digital handheld microphones
- Ten U-62D digital bodypack transmitters

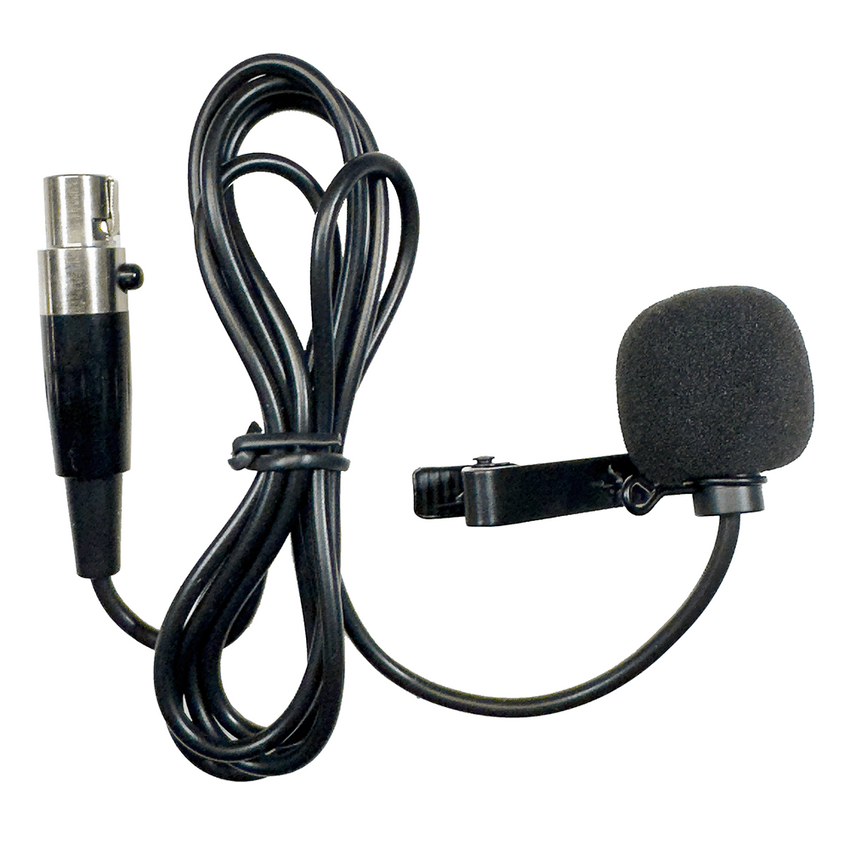

- Ten LAV-2 lavalier microphones
- Ten HSD-SLIMLINE+SE single-ear headsets
- Handheld, lavalier, or headset options for every channel
- 24-bit digital audio conversion
- Automatic frequency scanning
- Infrared transmitter synchronization
- Independent receiver-channel controls
- 300' Line-of-sight operating range
- Professional rack-mounted configuration
- Rugged 14U flight case
- Designed for transportation, storage, and repeated setup
- Ideal for rental companies, events, schools, theaters, venues, and houses of worship

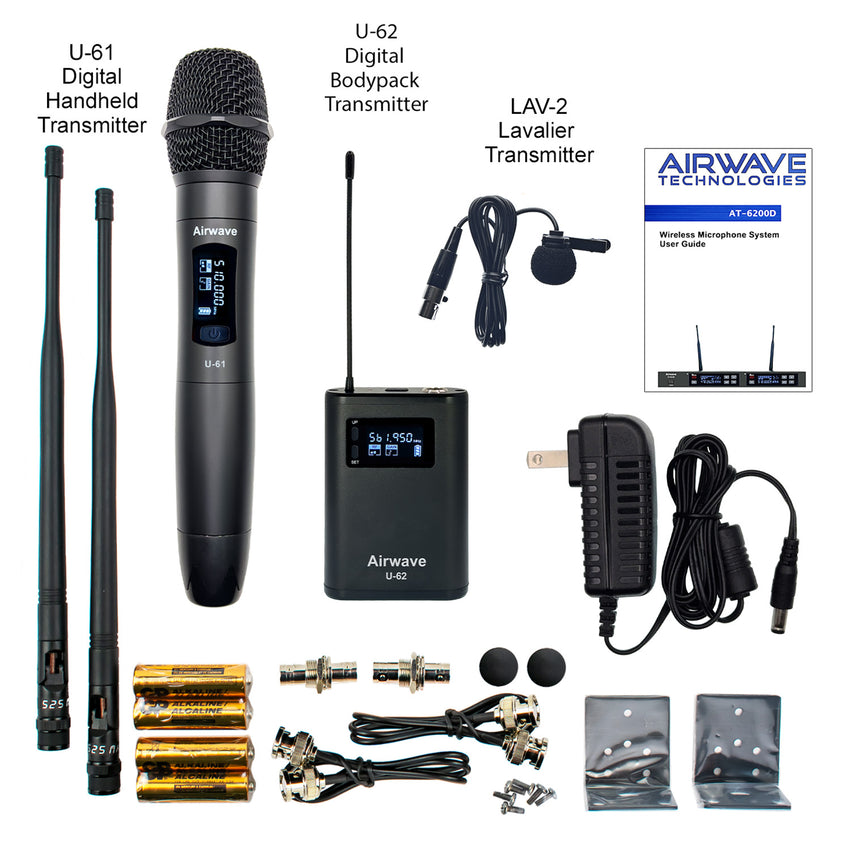

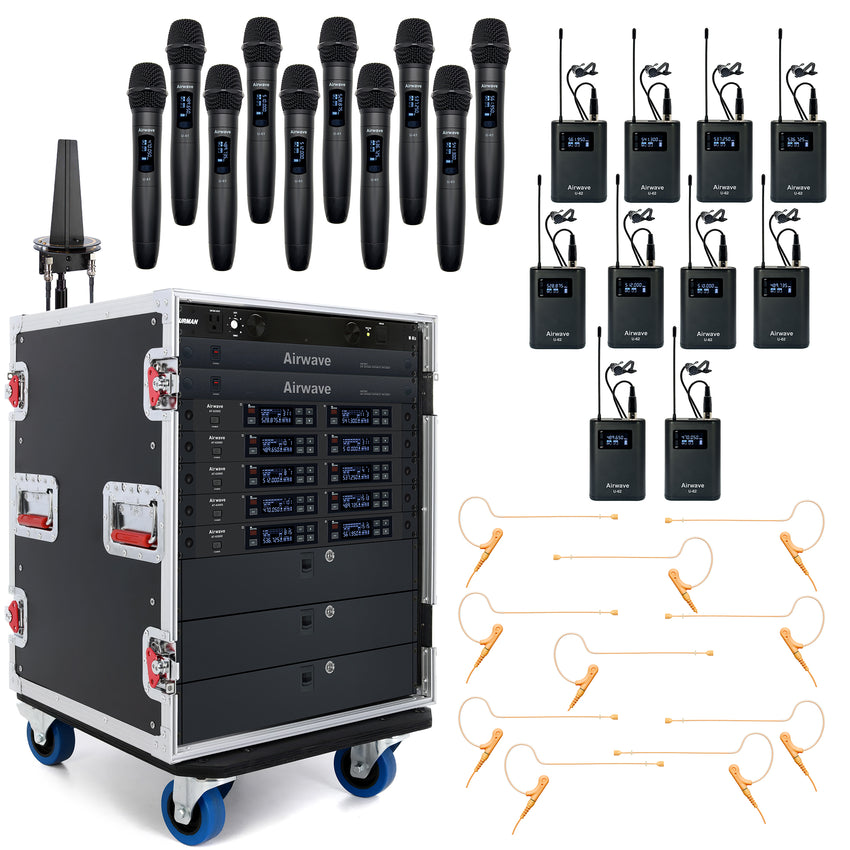

Included in the System
- 5 AT-6200D dual-channel digital wireless receivers
- 10 U-61D digital handheld microphones
- 10 U-62D digital bodypack transmitters
- 10 LAV-2 lavalier microphones
- 10 HSD-SLIMLINE+SE single-ear headset microphones
- 1 14U flight case

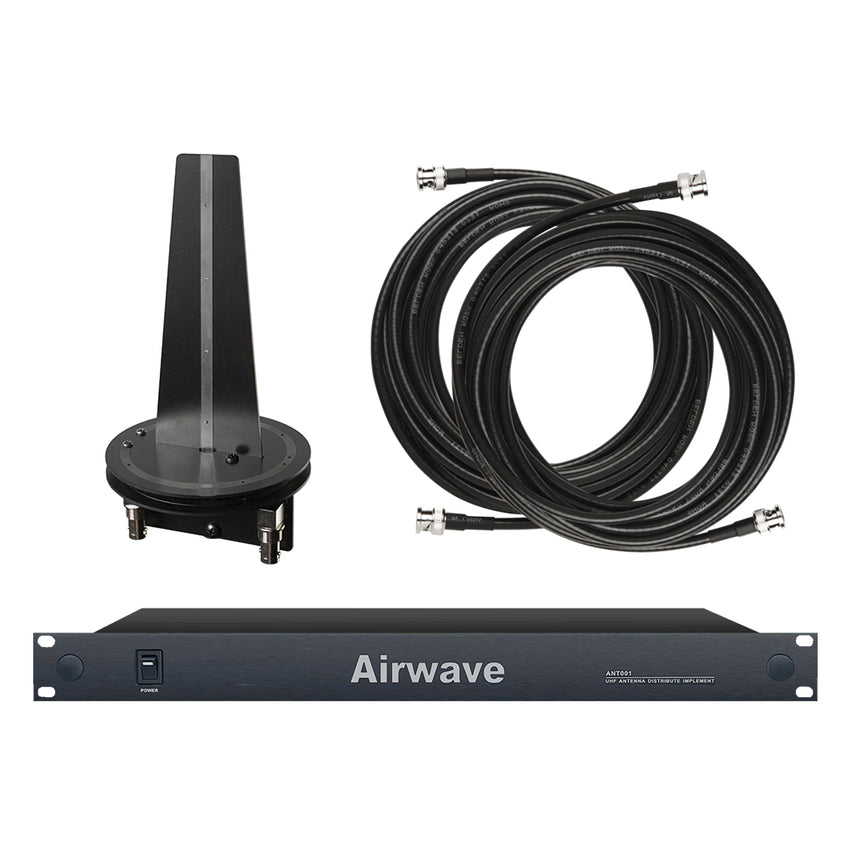

- 2 ANT001 Antenna Distro
- 1 AT-OMNI Antenna
- Power conditioner with lights
- Required rack components and system accessories
*Microphone Stand for AT-Omni Antenna Not Included

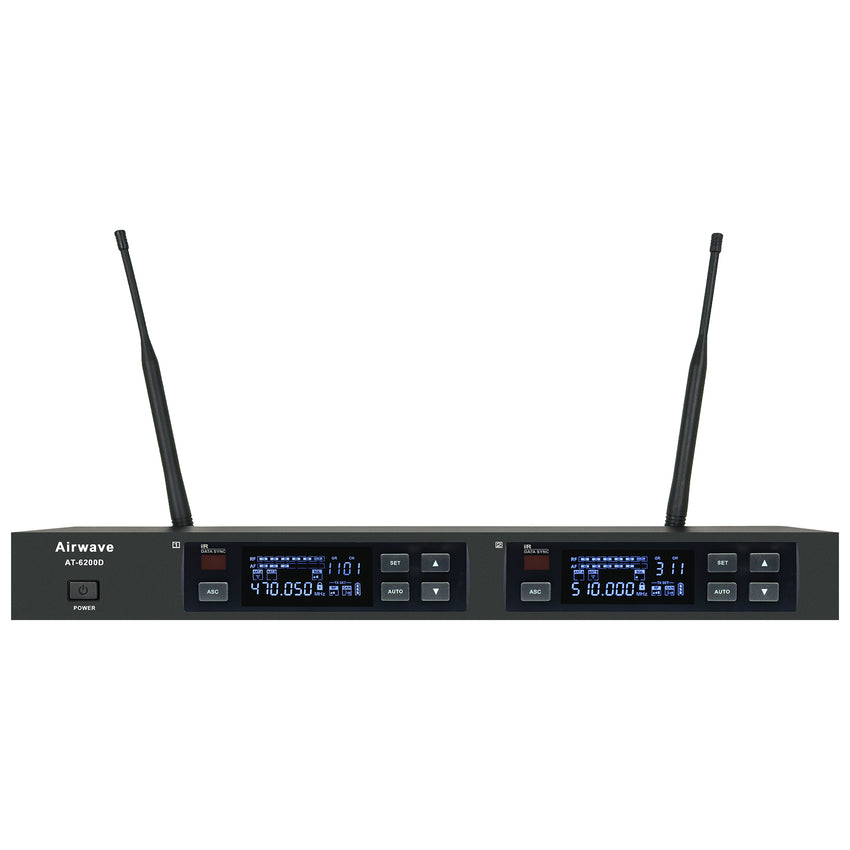

AT-6200D Wireless Microphone Receiver Features
RF Frequency Range: 470~510Mhz, 512~562MHz
Digital Modulation Mode: QPSK
Digital Audio Resolution: 24-bit A/D Conversion
Dynamic Range: 120dB (A-Weighted)
Frequency Response: 50Hz-18KHz (#3dB)
Signal to Noise Ratio: >95dB (A)
System Distortion: <0.1 % (THD+N @ AF 1KHz)
Noise Floor: <-93dBV (A) XLR
Maximum Output: +5dBV‡1
AF System Gain: +15dB+1
Gain Control Range: 0 to 63dB per 1dB Step
Audio Output: XLR CH1 & CH2 / XLR Mix / 1/4" Mix
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
System Operating Range: ≤300'
Antenna Connectors: 2 BNC 1/4 Wave Rear Mount
Power Requirements: 12V/0.5A DC
Power Consumption: <500mA @ DC12V
Operating Temperature Range: 28°F- 122°F
Dimensions: 16.142" (L) x 6.299"' (W) x 1.732" (H)
Weight: 3.71 lbs.

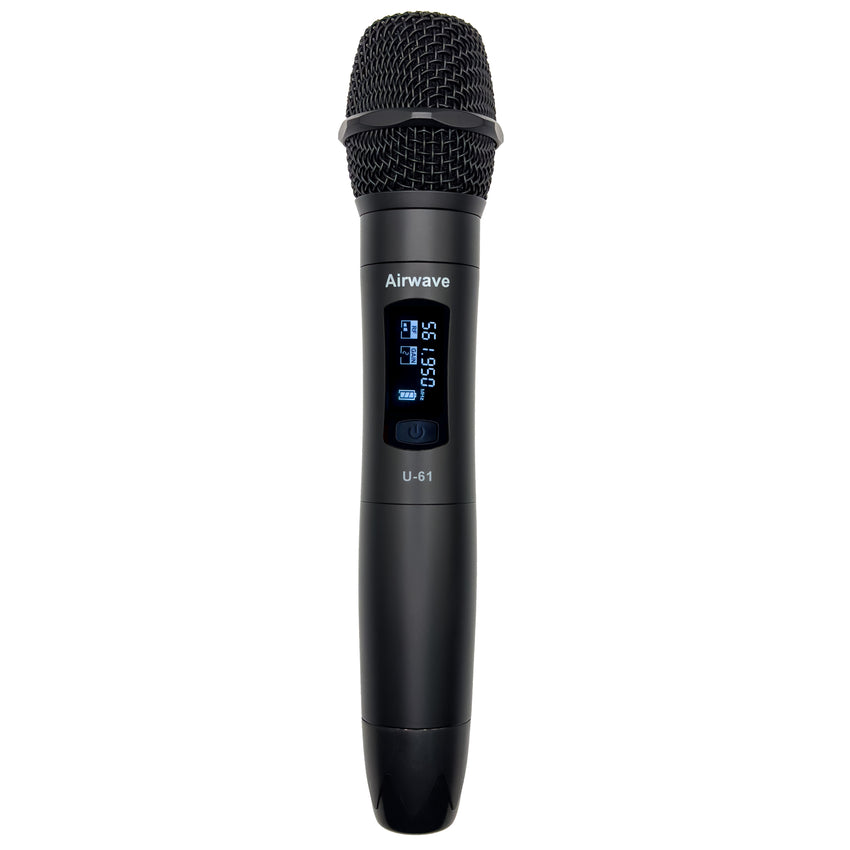

AT-U61D Handheld Microphone Transmitter Specifications
Digital Audio Resolution: 24-bit A/D Conversion
Interchangeable Capsule
Infrared Data Synchronization
Frequency Range: 470~510MHz, 512~562MHz
Dynamic Range: 110dB (A-Weighted)
Max SPL: 140dB
Capsule Frequency Response: 50Hz-16KHz (#3db)
Capsule Sensitivity: -50dB ÷ 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >100dB (A)
RF Output Power: H-15dBm M-10dBm L-5dBm (@‡2)
Gain Adjustment Range: 0/ -3/-6/-9 dB
Power Requirements: <190mA@3.OV- 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.51" x 1.97"
Weight: 10.37oz

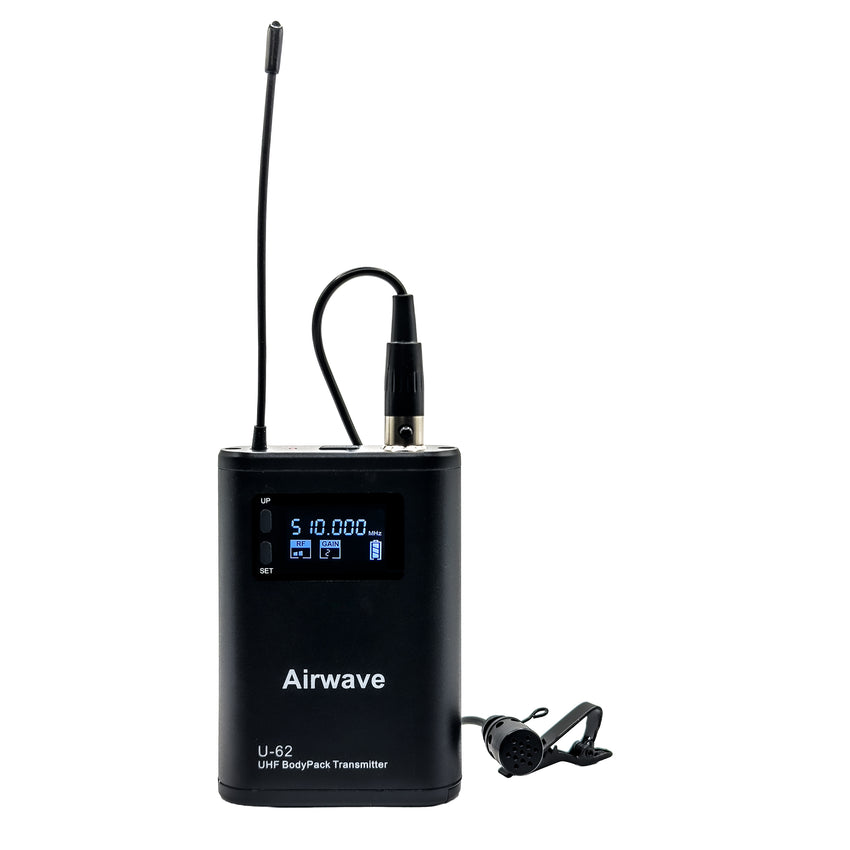

AT-U62D Handheld Microphone Transmitter Specifications
Digital Audio Resolution: 24-bit A/D Conversion
Infrared Data Synchronization
Durable Metal Body Construction
Frequency Range: 470~510MHz, 512~562MHz
Dynamic Range: 120dB (A-Weighted)
Frequency Response: 50Hz-15KHz (‡3db)
Gain Adjustment Range: 0 / -3/-6/ -9 dB
Input Impedance: 5KO
RF Output Power: H-15dBm M-10dBm L-5dBm (@‡2)
Harmonic Rejection: >50dB
Display: LCD
Power Requirements: < @3.OV- @3.OV- x x ( A A )
Battery Life: >10H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 3.77oz
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 6 units (6 to 12 channels) the use of an approved antenna combiner is highly recommended.
