AT-RS8 | 8 Channel Wireless Microphone System with 8 Handhelds, 8 Lavaliers, 8 Headsets with Bodypacks

$9,499.95$12,999.95

FREE SHIPPING!

Turnkey 8 Channel Wireless System Package with 8 Handhelds, 8 Single Ear Wireless Headsets with 8 Body Packs, and 8 Lavaliers

This is the an ideal 8 channel system for a rental company that needs to provide the ultimate solution for their customers.  The entire system is housed in a 10 space rolling flight case that securely protects each component of the system. Easy to transport, this setup with 3 different options for each of the 8 channels is the perfect solution for powerhouse wireless microphone rental services. Also available in multiple configurations.

4 Airwave Technologies AT-4200 Dual Channel Wireless Systems

8 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets

8 AT-4000 Series U41 Wireless Handheld Microphones

AT-LAV2 Lavalier Microphones

8 AT-4000 Series U-42 Wireless Body Packs

Furman M-8Lx Power Conditioner with Lights

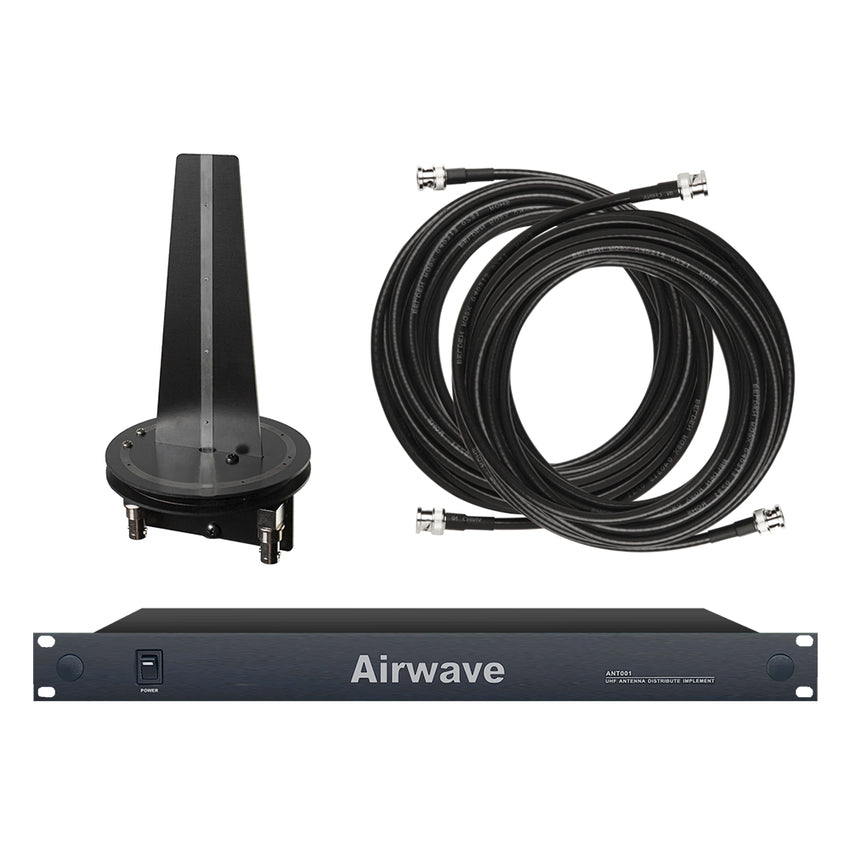

Rack Mount Antenna Distro

RF Venue Omni Directional Antenna

2 Band-Pass Filter 470-560 MHz

2 25ft Antenna Cables

8 Wireless Microphone Clips

10 Space Flight Rack with Casters

2 Two Space Rack Drawers with Diced Foam

514-542 MHz

FCC Tested and Approved: FCC ID  2AINTAT-4200

*Microphone stand for RF Venue DFIN not included



AT-4200 WIRELESS MICROPHONE RECEIVER SPECIFICATIONS

Frequency Range: 470~489MHz / 514~542 MHZ
Modulation : FM
Working Range: 328’
Optional Frequency: 192
Frequency Response: 50Hz ~ 15KHz (±3dB)
Dynamic Range: > 105dB
THD: < 0.5%
S/N Ratio: > 102dB(A)
RF Sensitivity: < -95dBm
Image Rejection: > 60dB
Output Connectors: XLR×1/ 1/4-inch connector×1
Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV
Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements:  12V/0.5A DC
Operating Temperature Range: 32°F - 122°F
Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)
Weight: 3.858 lb.
FCC ID: 2AINTAT-4200

AT-U41 HANDHELD MICROPHONE TRANSMITTER SPECIFICATIONS

Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz
Capsule Frequency Response: 50Hz ~ 16KHz
Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power: 2mW / 10mW / 30mW
Spurious: >dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84” x 1.97”
Weight: 12.7oz

AT-U42 BODYPACK TRANSMITTER SPECIFICATIONS

Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ

Output Power: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >8H/1300mAH
Dimensions: 6.5” x 2.56” x .91”

Weight: 4.59oz



4200 Series Manual Link

If using up to 2 units (up to 4 channels) the system does not require an antenna combiner under normal conditions.  If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended. The official Antenna distribution partner of Airwave Technologies is RF Venue.   They are without question, the leaders of antenna distribution.
