Serious Wireless Capacity for Demanding Productions
When productions get bigger, wireless has to keep up. The Airwave Technologies AT-RS12D delivers 12 channels of professional digital wireless in a complete production-ready package designed for demanding live events, rental applications, houses of worship, theater, education, and corporate AV.
At the center of the system are six AT-6200D dual-channel digital wireless receivers, delivering clear, consistent audio across all 12 channels. Digital transmission helps minimize the hiss and noise associated with traditional analog wireless while maintaining dependable audio quality throughout the system.
The AT-RS12D is built around versatility. Every channel can be configured around the needs of the production with a complete selection of U-61D digital handheld transmitters, U-62D digital bodypack transmitters, LAV-2 lavalier microphones, and HSD-SLIMLINE+SE single-ear headsets.
That means one system can support presenters with lavaliers, performers with headsets, vocalists with handheld microphones — or virtually any combination the production requires.
Built for High-Channel-Count Productions

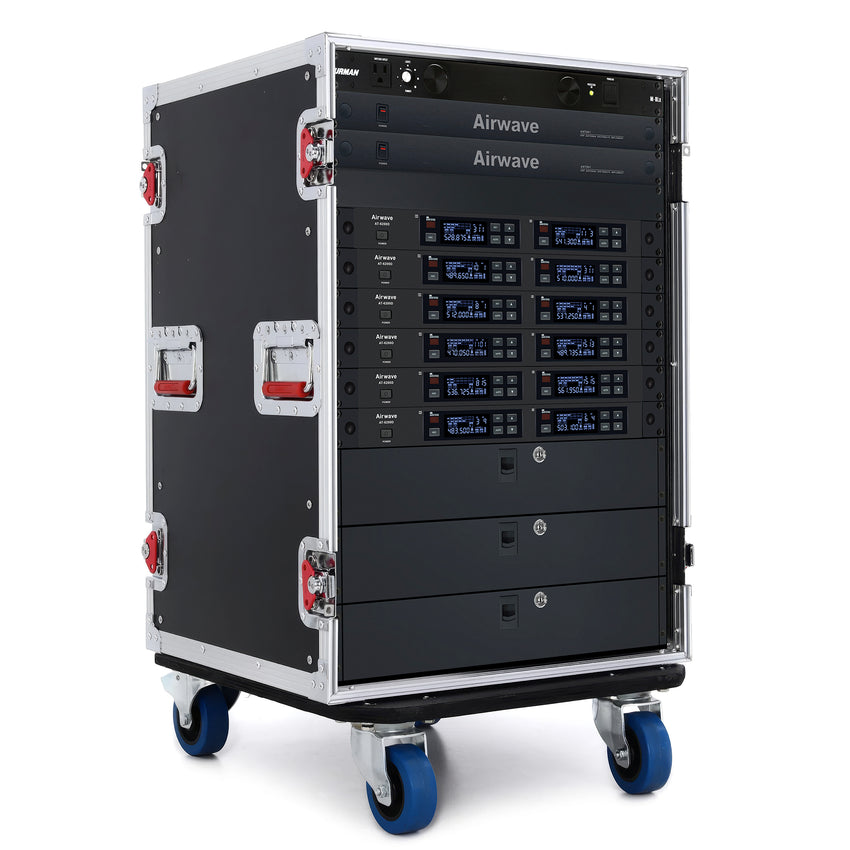

The AT-RS12D eliminates the need to assemble a large wireless system one component at a time. Receivers, transmitters, microphones, antenna distribution, and essential rack hardware are organized into one professional system designed to arrive ready for the job.
For rental companies, that means a highly adaptable system capable of handling a wider variety of clients and productions. For permanent installations, it provides the flexibility to accommodate changing programming without changing the entire wireless infrastructure.
Twelve channels. Three microphone options. One production-ready system.
Key Features
- Complete 12-channel digital wireless system
- Six AT-6200D dual-channel digital receivers
- Twelve U-61D digital handheld microphones
- Twelve U-62D digital bodypack transmitters
- Twelve LAV-2 lavalier microphones
- Twelve HSD-SLIMLINE+SE single-ear headsets
- Handheld, lavalier, or headset options for every channel
- 24-bit digital audio conversion
- Automatic frequency scanning
- Infrared transmitter synchronization
- Independent receiver-channel controls
- 300' Line-of-sight operating range
- Professional rack-mounted configuration
- Rugged 16U flight case
- Designed for transportation, storage, and repeated setup
- Ideal for rental companies, events, schools, theaters, venues, and houses of worship

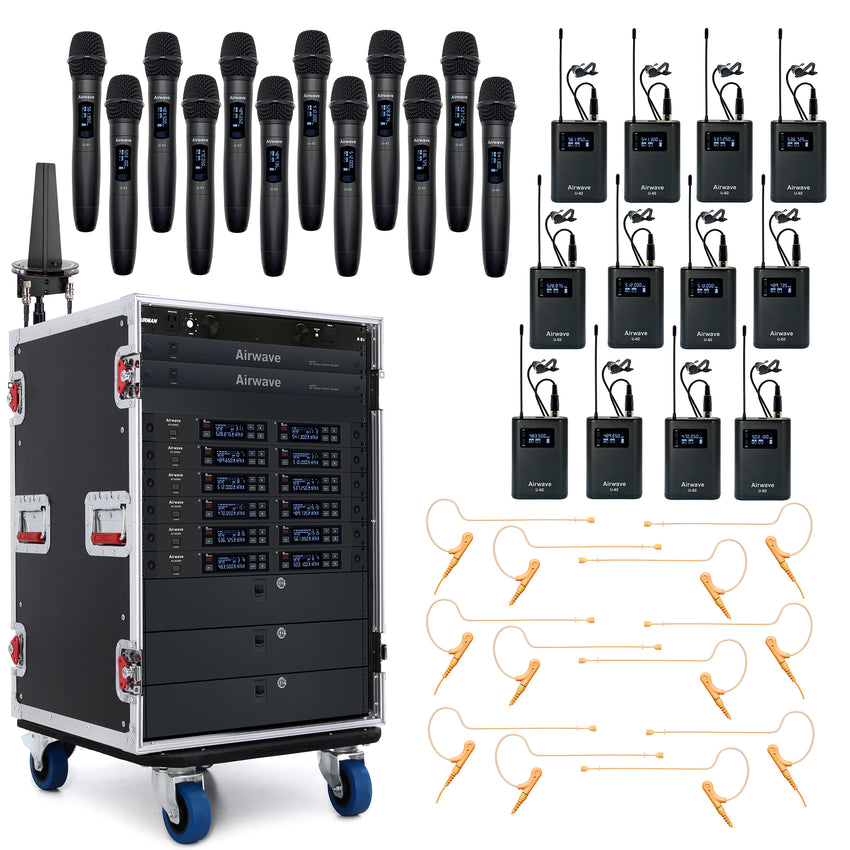

Included in the System
- 6 AT-6200D dual-channel digital wireless receivers
- 12 U-61D digital handheld microphones
- 12 U-62D digital bodypack transmitters
- 12 LAV-2 lavalier microphones
- 12 HSD-SLIMLINE+SE single-ear headset microphones
- 1 16U flight case
- 2 ANT001 Antenna Distro
- 1 AT-OMNI Antenna
- Required rack components and system accessories
*Microphone Stand for AT-Omni Antenna Not Included
AT-6200D Wireless Microphone Receiver Features
RF Frequency Range: 470~510Mhz, 512~562MHz
Digital Modulation Mode: QPSK
Digital Audio Resolution: 24-bit A/D Conversion
Dynamic Range: 120dB (A-Weighted)
Frequency Response: 50Hz-18KHz (#3dB)
Signal to Noise Ratio: >95dB (A)
System Distortion: <0.1 % (THD+N @ AF 1KHz)
Noise Floor: <-93dBV (A) XLR
Maximum Output: +5dBV‡1
AF System Gain: +15dB+1
Gain Control Range: 0 to 63dB per 1dB Step
Audio Output: XLR CH1 & CH2 / XLR Mix / 1/4" Mix
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
System Operating Range: ≤300'
Antenna Connectors: 2 BNC 1/4 Wave Rear Mount
Power Requirements: 12V/0.5A DC
Power Consumption: <500mA @ DC12V
Operating Temperature Range: 28°F- 122°F
Dimensions: 16.142" (L) x 6.299"' (W) x 1.732" (H)
Weight: 3.71 lbs.
AT-U61D Handheld Microphone Transmitter Specifications
Digital Audio Resolution: 24-bit A/D Conversion
Interchangeable Capsule
Infrared Data Synchronization
Frequency Range: 470~510MHz, 512~562MHz
Dynamic Range: 110dB (A-Weighted)
Max SPL: 140dB
Capsule Frequency Response: 50Hz-16KHz (#3db)
Capsule Sensitivity: -50dB ÷ 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >100dB (A)
RF Output Power: H-15dBm M-10dBm L-5dBm (@‡2)
Gain Adjustment Range: 0/ -3/-6/-9 dB
Power Requirements: <190mA@3.OV- 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.51" x 1.97"
Weight: 10.37oz
AT-U62D Handheld Microphone Transmitter Specifications
Digital Audio Resolution: 24-bit A/D Conversion
Infrared Data Synchronization
Durable Metal Body Construction
Frequency Range: 470~510MHz, 512~562MHz
Dynamic Range: 120dB (A-Weighted)
Frequency Response: 50Hz-15KHz (‡3db)
Gain Adjustment Range: 0 / -3/-6/ -9 dB
Input Impedance: 5KO
RF Output Power: H-15dBm M-10dBm L-5dBm (@‡2)
Harmonic Rejection: >50dB
Display: LCD
Power Requirements: < @3.OV- @3.OV- x x ( A A )
Battery Life: >10H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 3.77oz
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 6 units (6 to 12 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
